Plant Science Today (PST)

Research Articles

Vol. 13 No. 2 (2026)

Standardization of phycobiliproteins extraction process from two microalgal species (Pseudanabaena limnetica and Phormeidum persicinum) isolated from Saltpan of Mulund, Mumbai

DOI
https://doi.org/10.14719/pst.10691
Submitted
16 July 2025
Published
04-05-2026 — Updated on 13-05-2026
Versions

Abstract

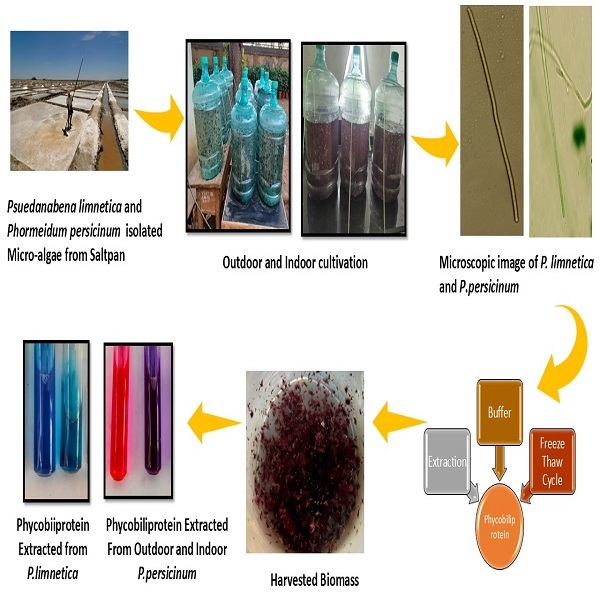

Although Spirulina species are widely exploited for the commercial production of phycobiliproteins, high light intensities and elevated temperatures negatively affect both biomass productivity and phycocyanin (PC) content. Moreover, they require mechanical cell disruption methods, thereby increasing overall extraction costs. Therefore, there is a growing need to explore alternative cyanobacterial strains with improved stress tolerance and more efficient pigment recovery. In the present study, two indigenous salt-tolerant cyanobacterial strains, Pseudanabaena limnetica and Phormidium persicinum, isolated from the salt pans of the Mumbai suburban region, were evaluated for their potential to produce phycobiliproteins under tropical outdoor conditions. The PC extraction protocol was standardised for both isolates by optimising buffer type, molarity, pH and freeze-thaw cycles. The effect of outdoor culturing on biomass and phycobiliprotein yield was also assessed. For P. limnetica, two freeze-thaw cycles using potassium phosphate buffer (0.1 M, pH 6.2) resulted in significantly higher PC extraction efficiency, as confirmed by one-way ANOVA followed by Tukeys’ post-hoc test. For P. persicinum cultured indoors, one freeze-thaw cycle with sodium phosphate buffer (0.1 M, pH 6.2) yielded the highest pigment recovery, producing 0.93 mg mL-1 of PC and 1.03 mg mL-¹ of phycoerythrin (PE). Under outdoor culture conditions, potassium phosphate buffer (pH 6.2) was also found to be optimal for extraction from P. persicinum.

References

  1. 1. Jaeschke DP, Teixeira IR, Marczak LD, Mercali GD. Phycocyanin from Spirulina: A review of extraction methods. Food Hydrocoll. 2021. https://doi.org/10.1016/j.foodhyd.2021.106852
  2. 2. Chaiklahan R, Chirasuwan N, Srinorasing T, Attasat S, Nopharatana A, Bunnag B. Enhanced biomass and phycocyanin production of Arthrospira (Spirulina) platensis by a cultivation management strategy: Light intensity and cell concentration. Bioresour Technol. 2022;343:126077.
  3. 3. Schipper K, Fortunati F, Oostlander PC, Al Muraikhi M, Al Jabri HM, Wijffels RH, et al. Production of phycocyanin by Leptolyngbya sp. in desert environments. Algal Res. 2020. https://doi.org/10.1016/j.algal.2020.101890
  4. 4. Adjali A, Clarot I, Chen Z, Marchioni E, Boudier A. Physicochemical degradation of phycocyanin and means to improve stability. Food Bioprocess Tech. 2021. https://doi.org/10.1007/s11947-021-02641-5
  5. 5. Shayesteh H, Parbati A, Sánchez M. Co-producing phycocyanin and bioplastic in Arthrospira platensis. Front Bioeng Biotechnol. 2023;11:10366904. https://doi.org/10.3389/fbioe.2023.10366904
  6. 6. Manjre S, Deodhar M. Operational strategies for cost effective mass cultivation of halophilic microalgal strain P. limnetica in 1000 L flat panel photobioreactor. J Sustain Energy Environ. 2013;4:61–67.
  7. 7. Mhaskar K, Deodhar M. Isolation of halophilic cyanobacteria from saltpans of eastern suburbs of Mumbai. IJSRM Human. 2016;4(2):37–48.
  8. 8. Magar C, Deodhar M. Operational strategies for cost effective mass cultivation of halophilic microalgal strain P. limnetica in 1000 L flat panel photobioreactor. J Pet Environ Biotechnol. 2018;9:4.
  9. 9. Tribhuvan A, Deodhar M, Kengar A. Optimization of physico-chemical parameters for the production of phycobilin protein blue pigment, phycocyanin from the cyanobacterial strain Pseudanabaena limnetica (Lemmermann) Komarek. Plant Sci Today. 2023. https://doi.org/10.14719/pst.2100
  10. 10. Bennett A, Bogorad L. Complementary chromatic adaptation in a filamentous blue-green alga. J Cell Biol. 1973;58(2):419–35. https://doi.org/10.1083/jcb.58.2.419
  11. 11. Noore S, Tiwari BK, Jambrak AR, Dukić J, Wanigasekara J, Curtin JF, et al. Extraction yield and biological activity of phycobiliproteins from Porphyridium purpureum using atmospheric cold plasma discharge and jet systems. LWT–Food Sci Technol. 2023;187:115204. https://doi.org/10.1016/j.lwt.2023.115204
  12. 12. Moraes CC, Kalil SJ. Strategy for a protein purification design using C-phycocyanin extract. Bioresour Technol. 2009;100(21):5312–17. https://doi.org/10.1016/j.biortech.2009.05.026
  13. 13. Singh NK, Sonani RR, Rastogi RP, Madamwar D. The phycobilisomes: an early requisite for efficient photosynthesis in cyanobacteria. EXCLI J. 2015;14:268–89.
  14. 14. Freitas MV, Pacheco D, Cotas J, Mouga T, Afonso CN, Pereira L. Red seaweed pigments from a biotechnological perspective. Phycology. 2022;2(1):1–29. https://doi.org/10.3390/phycology2010001
  15. 15. Chen H, Qi H, Xiong P. Phycobiliproteins-a family of algae-derived biliproteins: productions, characterization and pharmaceutical potentials. Mar Drugs. 2022;20(7):450. https://doi.org/10.3390/md20070450
  16. 16. Tan HT, Yusoff FM, Khaw YS, Mazli NAI, Nazarudin MF, Shaharuddin NA, et al. A review on a hidden gem: Phycoerythrin from blue-green algae. Mar Drugs. 2022;21(1):28. https://doi.org/10.3390/md21010028
  17. 17. Morya S. Potential protein phycocyanin: an overview on extraction, characterization and applications. J Food Sci Technol. 2023. https://doi.org/10.1080/10942912.2023.2271686
  18. 18. Jaeschke DP. Phycocyanin from Spirulina: A review of extraction methods and applications. J Appl Phycology. 2021. https://doi.org/10.1016/j.japlph.2021.10.001
  19. 19. MacColl R. Review: Allophycocyanin and energy transfer. Biochim Biophys Acta. 2004;1657(2–3):233–43. https://doi.org/10.1016/j.bbabio.2004.02.006
  20. 20. Krishna Kumar Athilakshmi J, Aravind Raman H, Roy UK, McClure DD. Development and optimization of a photoautotrophic phycoerythrin production process. J Appl Phycology. 2025;37(4):2313–28.
  21. 21. Xiang Y, Xue Q. Recent advances of natural pigments from algae. Food Prod Process Nutr. 2023;5:1. https://doi.org/10.1186/s43014-023-00155-y
  22. 22. Payne EJR, Griffiths M, Harrison STL. A summary and critique of the various spectrophotometric methods used to quantify C-phycocyanin concentration. J Appl Phycology. 2025;37:727–34. https://doi.org/10.1007/s10811-025-03474-4
  23. 23. Oliveira EG, Duarte JH, Moraes K, Crexi VT, Pinto LA. Optimisation of Spirulina platensis convective drying: evaluation of phycocyanin loss and lipid oxidation. Int J Food Sci Tech. 2010;45(8):1572–78. https://doi.org/10.1111/j.1365-2621.2010.02299.x
  24. 24. Sivasankari S, Naganandhini N, Ravindran D. Comparison of different extraction methods for phycocyanin extraction and yield from Spirulina platensis. 2014.
  25. 25. Tavanandi HA, Mittal R, Chandrasekhar J, Raghavarao KSMS. Simple and efficient method for extraction of C-Phycocyanin from dry biomass of Arthrospira platensis. Algal Res. 2018;31:239–51. https://doi.org/10.1016/j.algal.2018.02.008
  26. 26. Kisaoglan B, Demirel Z, Conk Dalay M. Phycocyanin extraction from frozen and freeze-dried biomass of Pseudanabaena sp. by using mild cell disruption methods. Mar Sci Tech Bull. 2021;10(4):333–39. https://doi.org/10.33714/masteb.951265
  27. 27. Pispas K, Manthos G, Sventzouri E, Geroulia M, Mastropetros SG, Ali SS, et al. Optimizing phycocyanin extraction from cyanobacterial biomass: A comparative study of freeze-thaw cycling with various solvents. Mar Drugs. 2024;22(6):246. https://doi.org/10.3390/md2206246
  28. 28. Gorgich M, Passos MLC, Mata TM, Martins AA, Saraiva MLMF S, Caetano NS. Enhancing extraction and purification of phycocyanin from Arthrospira sp. with lower energy consumption. Energy Rep. 2020;6:312–18. https://doi.org/10.1016/j.egyr.2020.11.151
  29. 29. Khan S. Isolation of cyanobacterial strains from saltpans and culturing in a cost effective photobioreactor for phycobiliprotein production. [Thesis]. Mumbai: University of Mumbai; 2024.
  30. 30. Plummer DT. An introduction to practical biochemistry. 3rd ed. McGraw-Hill Education; 1987.
  31. 31. AAT Bioquest, Inc. Quest Calculate™ Phosphate Buffer (pH 5.8 to 7.4). Preparation and Recipe. 2025.
  32. 32. Cold Spring Harbor Protocols. Preparation of Potassium Phosphate Buffer. 2015.
  33. 33. Kovaleski G, Kholany M, Dias LMS, Correia SFH, Ferreira RAS, Coutinho JAP, et al. Extraction and purification of phycobiliproteins from algae and their applications. Front Chem. 2022;10:1065355. https://doi.org/10.3389/fchem.2022.1065355
  34. 34. Dagnino-Leone J, Figueroa CP, Latorre M, Donoso A, Vallejos-Almirall A, Agurto-Muñoz A, et al. Phycobiliproteins: structural aspects, functional characteristics and biotechnological perspectives. Comput Struct Biotec. 2022;20:1506–27. https://doi.org/10.1016/j.csbj.2022.02.016
  35. 35. Pan-utai W, Iamtham S. Physical extraction and extrusion entrapment of C-phycocyanin from Arthrospira platensis. J King Saud Univ Sci. 2019;31(4):1535–42.
